Description
Truma Combi D4E Diesel & Electric, Blown Air & Water Heater With iNet X Control Panel
The Combi D 4 E is structurally identical to the Combi D 4, the only difference being the integrated electric heating elements. The diesel version is equipped with a high-quality burner and therefore reliably heats the vehicle while driving.
At the camp site, simply switch over to electrical mode and run the heater with 230 V, with no need for the vehicle battery. Depending on the required output, choose between diesel, electric or mixed mode: in milder weather, set the appliance to electrical mode, on colder days to diesel mode and in extremely cold weather use mixed mode – diesel and electrical mode. Through four air outlets, the warm air flows into the vehicle where it is distributed optimally.
The powerful Combi D 4 E heats small and medium-sized vehicles within a short time. The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required. This means that you do not need an additional water heater, which saves space and weight. The Combi heater is also very compact and offers many different installation options.
The Combi D 4 E is controlled and monitored with the digital Truma CP plus (iNet ready) control panel or via the iNet X System.

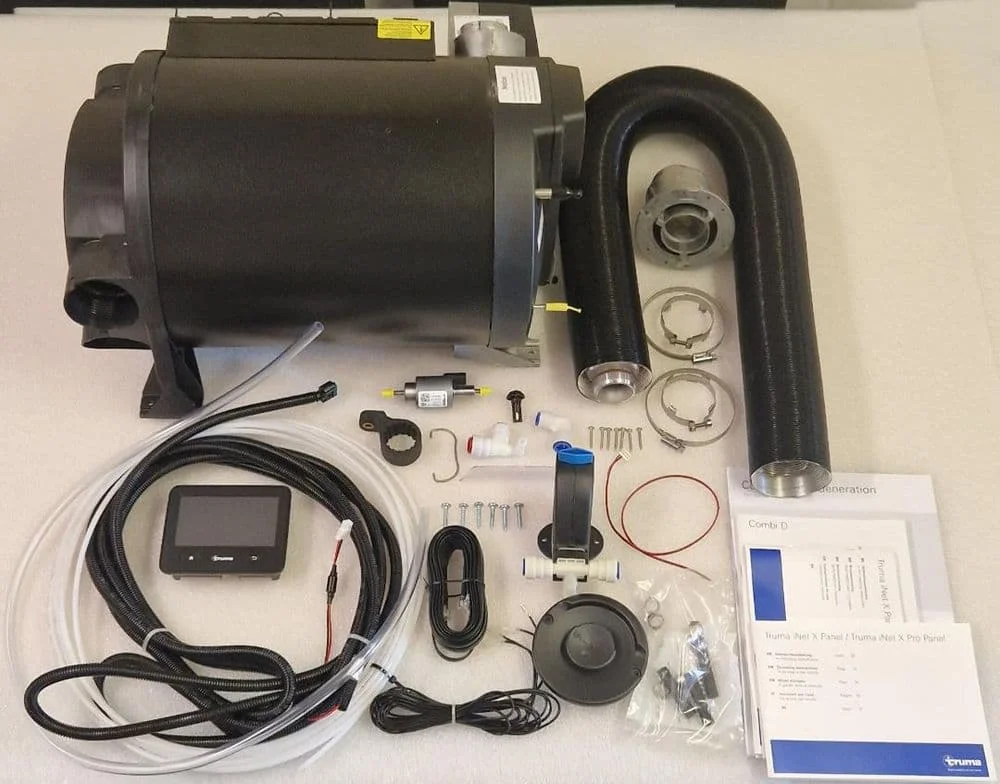

Product contents:
– Combi D 4 E Diesel And Electric Heater
– Combi frost control JG assy
– Truma iNet X Panel
– 6 Metre control cable
– Ducting kit Combi D 1M BPK12
– Wall Cowl Inner Part
– Cowl outer part black ZR80
– Room temperature sensor (cable not included)
– Fuel line 5×1.5mm
– Clamps, fixings and clips
Features
– Can also be operated with an empty water tank
– Frost Control drain valve is installed
– Simple operation with the digital control panel via iNet X System
– Optimum warm air distribution via four air outlets
– 10-litre stainless steel water tank
– Compact and space-saving, various installation options
– Heats the vehicle and water very quickly
– Uses little energy
– Integrated pressure sensor automatically controls the combustion air infeed
– Long service life thanks to efficient combustion control
– Automatic climate control possible in combination with a Truma air conditioner
Key Features
- Heat Hybrid: integrated electric heating elements for additional electrical power
- 2 in 1: heats your vehicle and heats water at the same time
- For small and medium-sized vehicles
Specifications
| Brand | Truma |
| Type | 12 & 230 Volt |
| Voltage | 12 / 230V |
| Model | Combi D4 E |
| Height | 300mm |
| Width | 450mm |
| Length | 510mm |
| Weight | 16.8g |
| Flow Rate | Air: max. 287 m³/h |
| Operating Pressure | 30 mbar |
| Consumption | Fuel: 0,1 – 0,4 l/h |
| Application | Caravans, Motorhomes |
| Capacity | 10 Litres (2.6 US Gallons) |
| Heat Output |
Diesel Mode: 1000 W/2000 W/3000 W/4000W Electric Mode 900 W/1800 W Mixed Mode: max. 3800 W |
Ducting and outlets for the heating side are all available as optional extras.
The heart of the Truma iNet X system and the first step towards a smart camper –
The iNet X System enables you to centrally control your indoor climate, hot water or similar, continually keep an eye on key status indicators and much more.
– One central operating system: control key appliances from different manufacturers and services with one central operating system. So you will always have everything under control.
– Status queries at a glance: real-time status indicators for all appliances and services. So you can always keep an eye on them all.
– Intuitive operation: clear and uniform user interface in the panel with colour touch display and app for intuitive operation. So you will be familiar with the system right away.
– Advanced control via your smartphone: it is possible to control appliances using your own smartphone with the free Truma iNet X App. Meaning you will be smartly connected.
– Future-oriented: add and benefit from further developments by means of updates – even after the system has been installed. So you will always be up-to-date.
– Troubleshooting help: detailed, preciseof the fault including recommendations on how to solve the issue yourself rather than cryptic fault codes. Meaning you are independently and safely on the move.
– Customisable: App interface can be configured according to individual requirements. So everything is geared to your own needs.
The Truma iNet X App is the mobile version of the Truma iNet X Panel. The App can be used to set the hot water from the comfort of your bed or to check the indoor climate while relaxing on your lounger. A Bluetooth connection is currently required for this purpose. The App is required to perform updates to your Truma iNet X (Pro) Panel. This is the only way to extend the system and to benefit from future developments.
Download The Truma iNet X Operating Instructions
Download The Truma Combi D Installation Instructions
Download The Truma Combi D Operating Instructions
