Description
ITEM DESCRIPTION

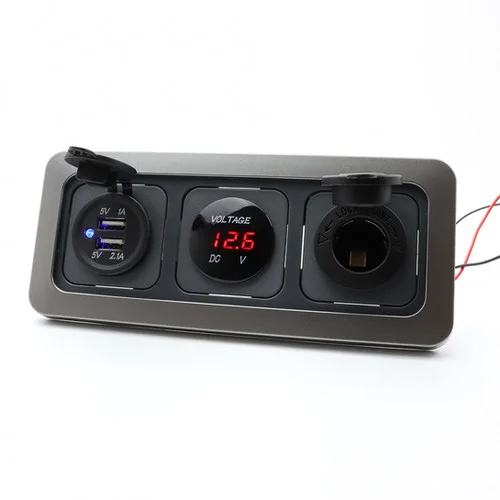

This unit features a gun metal grey C-Line triple frame and 1x Red LED 6-30v digital voltmeter display, 1x USB 12/24v, and 1x 12v cigarette style socket
This particular frame model is known as the ‘CT Range – Gun metal grey’
The voltage LED display can be used in campers and houseboats and can connect to your main battery or leisure battery
——————–
PACKAGE INCLUDES –
– 1x Red LED voltage display with a domed glassy front and a twist lock nut on the rear
– 1x USB socket with a splash-proof and dust-proof rubber cap and a twist lock nut on the rear
– 1x 12v cigarette style socket with dust-proof marine rubber cap and a twist lock nut on the rear
– 3x C-Line mounting plates
– 1x C-Line inner frame which fits over the mounting plates (screw to the wall)
– 1x C-Line outer frame (clips to the inner frame)
——————–
ADDITIONAL NOTES –
– These pieces all fit together so that the finished assemblage is screwed and clipped to the wall
– Once all items are in place there are no visible screws creating a professional clean finish
– Made from hard wearing plastic
– The voltmeter has a 6-30v voltage measuring range
– The USB has a blue LED which indicates that USB power is available, 2.1A for iPads laptops and tablets, 1A for regular USB devices like phones, DC 5V USB output voltage, 12/24v operating voltage
– The 12/24v cigarette style socket has a 20 amp maximum rating
– The frame measures 183mm by 77mm
– 50mm recess is required
