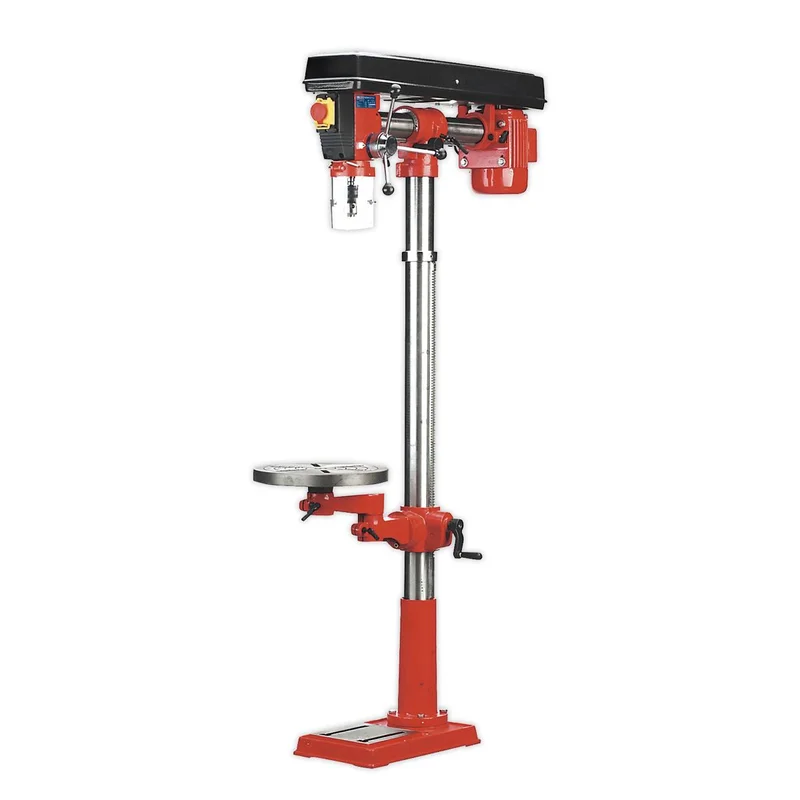

Sealey Radial Pillar Drill Floor 5-Speed 1620mm Height 550W/230V GDM1630FR

Description

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type – Model No. GDM1630FR.
Heavy-duty construction.
Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.
Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as bench mounting type – GDM790BR.
Mortise attachment available, order Model No. MA10.
16mm(5/8″) Capacity chuck, MT2.
Height: 1620mm.
Spindle Centre to Column – Max: 420mm.
Motor Power: 550W.
Column Diameter: 70mm.
Spindle Travel: 80mm.
Weight: 59kg.
