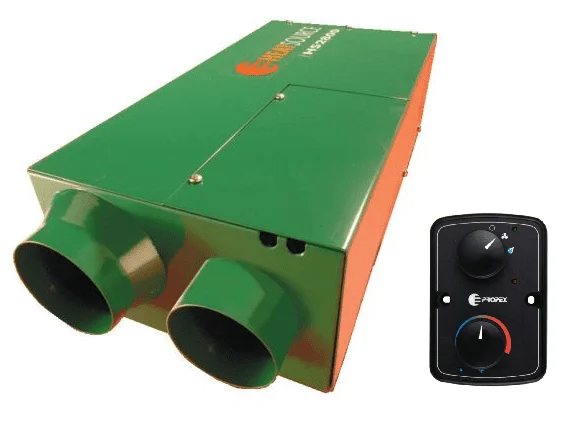

Propex Heatsource HS2800 Heater V1 12V Single Vehicle Kit With Twin Dial Thermostat

Description

The Propex HS2800 V1 12V Vehicle Kit is an automatic thermostatically controlled blown air heating system fuelled by propane or gas. The larger 2.8kW Heatsource is designed for a variety of automotive applications such as campervans, motorhomes, horseboxes and caravans as a source of heat totally independent of the engine.

Special Features

• Runs on clean burning propane or butane gas
• Quiet thermostatic operation
• Stainless steel burner and heat exchanger with clean combustion gives maintenance free durability
• Low electrical current consumption
• Compact and easy to install
• Fast warm-up time
• Reduces condensation
• High quality motor with ball race bearings
• Advanced micro-processor electronics
• Self diagnostic fault finding system
• Fully CE compliant and tested to the latest European standards


A single outlet single kit (V1) contains

• 1 x 1 metre 76mm ducting
• 1 x 1 metre 26mm combustion inlet pipe
• 1 x 0.75 metre 26mm Stainless Steel Exhaust pipe
• 1 x Thermostat
• 3.5 metres thermostat wiring harness
• 3.5 metres 12v supply harness
• 1 x directional hot air outlet
• 1 x directional cool air return vent
• Hose clips, fasteners, screws, inline fuse, instructions, drilling template

Applications

Propex Heatsource blown air systems are used in many applications throughout the world, these include Motorhomes, Caravans, Boats, Cranes, Horseboxes, Mobile Workshops etc. This is the 12 volt version.

Control

The HS2800 is supplied as standard with a solid state electronic thermostat which automatically switches the unit on and off to maintain the desired temperature. When the room temperature drops below the selected level, the Heatsource will automatically ignite and run until the cabin reaches the selected temperature. The thermostat is an easy to fit surface mount design and integrates with the new electronics fitted to the HS2000 and HS2800 heaters. An easy to operate panel mounted digital timer/thermostat specifically designed for Heatsource, is also available. Unlike some heaters, there is minimal electric current consumption during ignition so cycling the Heatsource on and off does not have the effect of additional battery drain.

Installation

The HS2800 V1 is supplied with a complete fitting kit to suit a vehicle. In vehicles and caravans the unit is usually mounted in a bed-box or cupboard, flued downwards through the floor and out to the side of the vehicle using flexible stainless ducting. The 26mm i.d. ducts are supplied as standard in lengths of 750mm for vehicles. The ends are finished with neat stainless steel end-caps which comply with EN624. The heat is ducted to one or more outlets through tough highly flexible 76mm ducting. In the case of multi-outlet installations, the first outlet is an open outlet with directional control and the rest are closable and are used in conjunction with the appropriate sized plastic Y-branches.


Economy

The chart below reflects the consumption of gas if the heater was running continuously. In reality, both heaters have similar very high efficiency ratings, so the overall gas consumption will be about the same because the HS2800 will be running for a shorter period of time before the thermostat switches it off


Technical Specifications

* Please note, the additional picture with Blue background shows the marine kit. This sale is for the vehicle kit.
