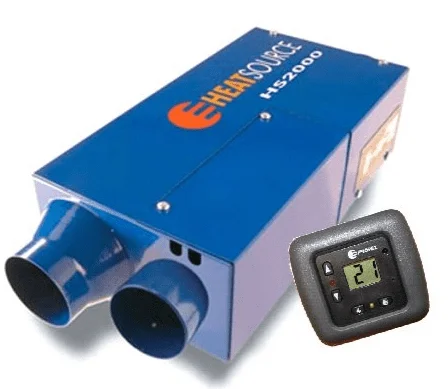

Propex Heatsource HS2000 Heater V2 Twin Vehicle Kit With Digital Thermostat

Description

Propex Heatsource HS2000 Heater V2 12V Twin Vehicle Kit With Digital Thermostat. The Propex Heatsource is designed for a variety of automotive applications such as campervans, motorhomes, horseboxes and caravans as a source of heat totally independent of the engine. The Propex Heatsource Heater HS2000 is a fully automatic, thermostatically controlled blown air heating system as a source of heat totally independent of the engine. The heater comes with full easy to follow fitting instructions. These Propex heaters just need a gas supply and 12 volt.

With forced air combustion and the Propex two stage stainless steel heat-exchanger, the HS2000 is a clean and highly efficient way to heat your vehicle. Combustion air is taken from outside and passed into the combustion chamber having been mixed with gas during its three aeration stages, this is ignited automatically and heats up the large surface area of the heat-exchanger.  Heatsource units are totally room sealed and exhaust all products of combustion externally through its stainless steels flue pipe. To add to the efficiency, room air is normally re-circulated in preference to using cold air from outside. The HS series heaters are also very efficient on electrical current consumption using high quality motor/fan combination and innovative current reducing electronics.

The kit includes the digital thermostat in place of the rotary dial style one.Digital selection of the required temperature allows precise setting to within a degree Centigrade within the 0 – 30C range. It’s design allows it to accept standard CBE frames,  so providing the ability to select from a wide range of readily available colours and styles to suit the interior of the vehicle. When connected to a gas only heater the thermostat offers the additional feature of a  1 – 16 hour countdown timer, selectable in one hour increments

Each kit should contain enough parts to carry out an installation up to the connection to a 8mm or 5/16th gas pipe.

A twin outlet vehicle fitting kit (V2) contains:

• 1 x 1 metre 60mm ducting
• 1 x 1 metre combustion inlet pipe
• 1 x 0.75 meter Stainless Steel Exhaust pipe
• 1 x Digital Thermostat
• 3.5 metres thermostat wiring harness
• 3.5 metres 12v supply harness
• 1 directional hot air outlet
• 1 directional cool air return vent
• hose clips, fasteners, screws, inline fuse, instructions, drilling template
• 1 x open/close vent
• 1 x Y branch
• Extra metre of 60mm hot air ducting
• Extra hose clips, fasteners and screws

Special Features

• Runs on clean burning propane or butane gas
• Quiet thermostatic operation
• Stainless steel burner and heat exchanger with clean combustion gives maintenance free durability
• Low electrical current consumption
• Compact and easy to install
• Fast warm-up time
• Reduces condensation
• High quality motor with ball race bearings
• Advanced micro-processor electronics
• Self diagnostic fault finding system
• Fully CE compliant and tested to the latest European standards

Click Here for Propex Heatsource HS2000 Installation Manual
