Description
ITEM DESCRIPTION

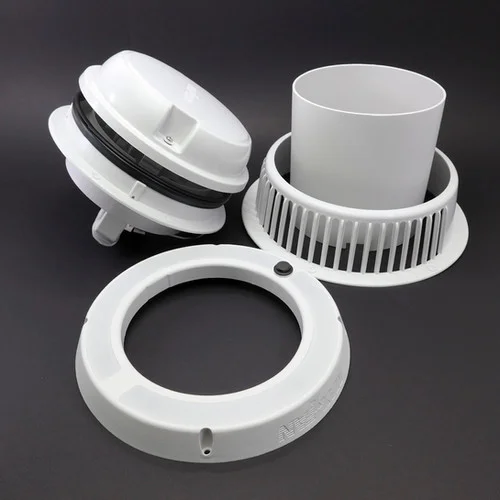

White Maxxair, MaxxFan Dome roof vent for campervans & motorhomes
This version features LED lighting that is built into the lower bezel/trim of the fan housing. The LED lights can be operated independently to the fan.
The smart choice for fresh air fans
Introducing a compact solution for rooftop or sidewall ventilation and moisture control in small areas including bathrooms and showers
For sidewall applications, the fan guard acts as a rain shield and protects your interior from weather and debris
Additionally, the fan guard provides protection from accidental contact with the fan blades
A 155mm cuthole is required – The external footprint of the dome is 210mm diameter, and the dome is 70mm tall when closed, and 90mm tall when open
If you are using the fan guard on a sidewall installation then the external footprint of the guard is 260mm diameter
Key Features
– Locking lid with single hand push button operation
– Built in LED lighting
– Operates on 12 Volt DC
– Removable screens make cleaning a breeze!
– Available in white or black
– Suitable for 38mm to 152mm roof/wall thickness
– Supplied with a matching fan guard used for sidewall installations
——————–
PACKAGE INCLUDES –
– 1x White Maxxfan Dome complete kit with LEDs
– Instructions
——————–
ADDITIONAL NOTES –
– Operation Voltage: 12v
– Start up Amp (Max): 2 amp
– Weight (KG): 1.910
– Fan Diameter: 6″
