Description

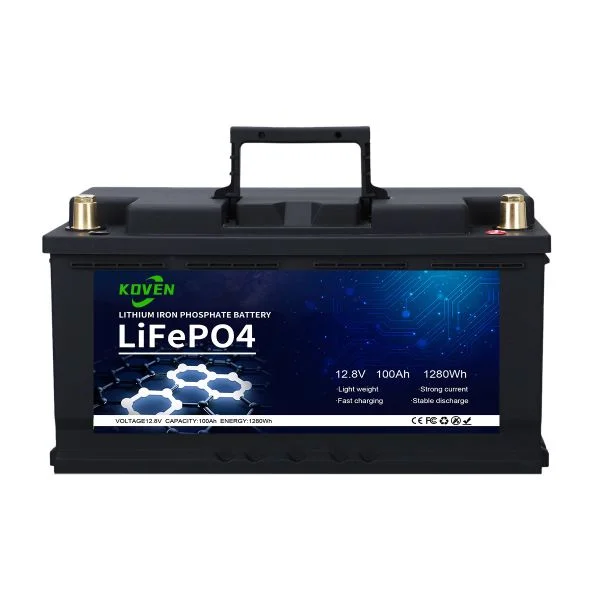

Koven Lithium 100Ah Low Box Battery
With Prismatic Cells
Constant discharge Current of 100A- JBD BMS
Bluetooth function- Check state of charge, Cell Voltages etc
5 year Warranty
Dimensions (L x W x H): 318 x 176 x 188 mm
Standard battery poles or install with bolts- note using bolts raises the height of the battery by circa 20mm
Model: KV-12100
Nominal capacity: 100 Ah / 1280Wh
Operating voltage: 10 – 14.6 V
Nominal voltage: 12.8V
Charging properties: CCCV / IU
Charging voltage: 14.4 V
Part type: Prismatic cells
Maximum charging current: 50A
Continuous discharge current: 100 A
Peak discharge cut-off current: 300 A (<3>BMS battery management system: integrated
BMS: JBD 100A to have reserves
Bluetooth:BMS works with the XiaoXiang app, only data reading possible
Balancer：
Batteries fit in Ducato, Jumper and Citroen etc models, 2 each under the seat where the factory-installed AGMs are located. Batteries can be easily exchanged 1:1 for lead/AGM batteries.
Warranty: 5-year guarantee
Protection: IP65
Temperature range (discharge): -20 ~ 60 ºC
Temperature range (charge): 0 ~ 55 ºC
Temperature range (storage): -20 ~ 45 ºC
Connection type: 1, round pole
Guarantee: 5-year manufacturer’s guarantee
Weight: 10KG±0.5KG
Dimensions (L x W x H): 318 x 176 x 188 mm
Up to 4 batteries 400AH can be connected in parallel
Or up to 4 batteries in series, 12V, 24V, 36V, 52V 150AH
