Description

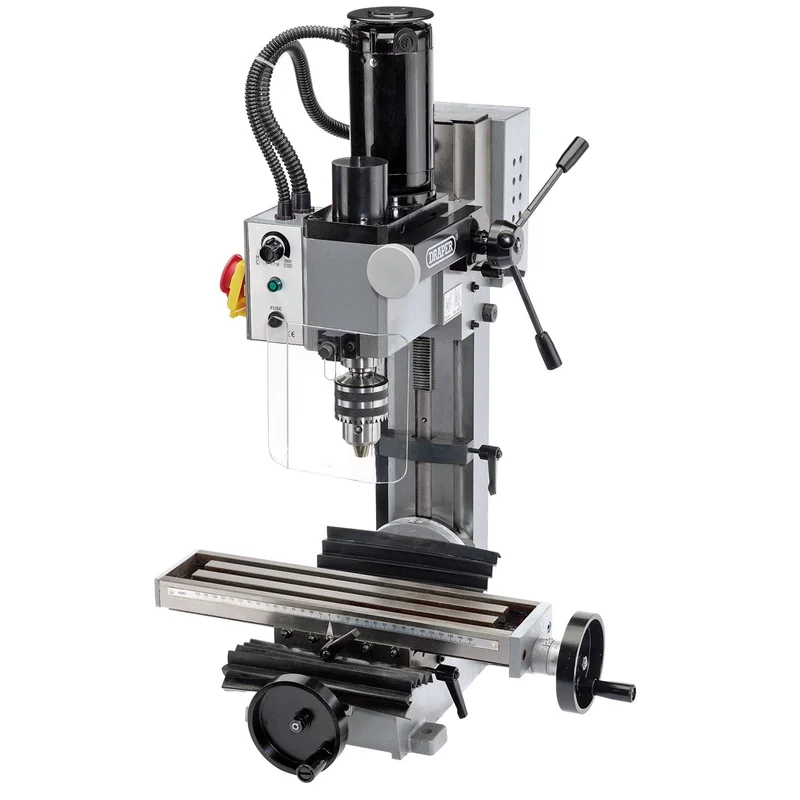

Bench mounting mini milling/drilling machine which will handle most materials. Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales. Column tilts from 0-45° from vertical. No-volt switch to prevent accidental switch on and approved three pin cable and approved plug. Carton packed.
Specifications
Drilling capacity13mm
Face milling capacity30mm
End milling capacity16mm
Headstock travel180mm
Cross axis100mm
Longitudinal axis220mm
Spindle tilt axis±0-45°
Spindle taperMT3
Low spindle speed100-1100r/min
High spindle speed100-2500r/min
T-slot12mm
Throat depth170mm
Table size390 x 92mm
Weight60kg
