Description

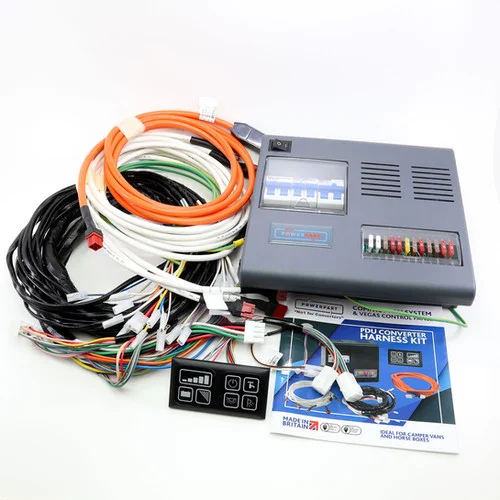

NOTE: This is for the PDU kit as shown in the first five photos. Photos of other products are for illustrative purposes only
——————–
ITEM DESCRIPTION
This is a pre-wired Power Distribution Unit (PDU), with inbuilt RCB/MCB and fuse box with inbuilt mains to 12v conversion
The PDU has a 230V input to a 25amp RCD that provides four 230V outputs for sockets and appliances through a 16-amp MCB
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V
There are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery
The wiring harness has 300mm ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths that feed: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2m length to the Control Panel
The Vegas control panel is a double C-Line panel. The panel has a master switch, lights switch and awning light switch, 2amp rated (Connection to awning light from Control Panel) and the Meter Panel has a voltmeter.
——————–
PACKAGE INCLUDES –
– 1 x PDU
– 1 x Vegas Control Panel
– Wiring harness
– Instructions
——————–
ADDITIONAL NOTES –
– For use in campervans, motorhomes, marine craft and houseboats
– This is a common fit in UK motorhomes and houseboats
– Fitted with 25 Amp Residual Circuit Breaker and 16 Amp Double Pole Miniature Circuit Breaker
– 307mm depth x 93mm Height x 262mm
